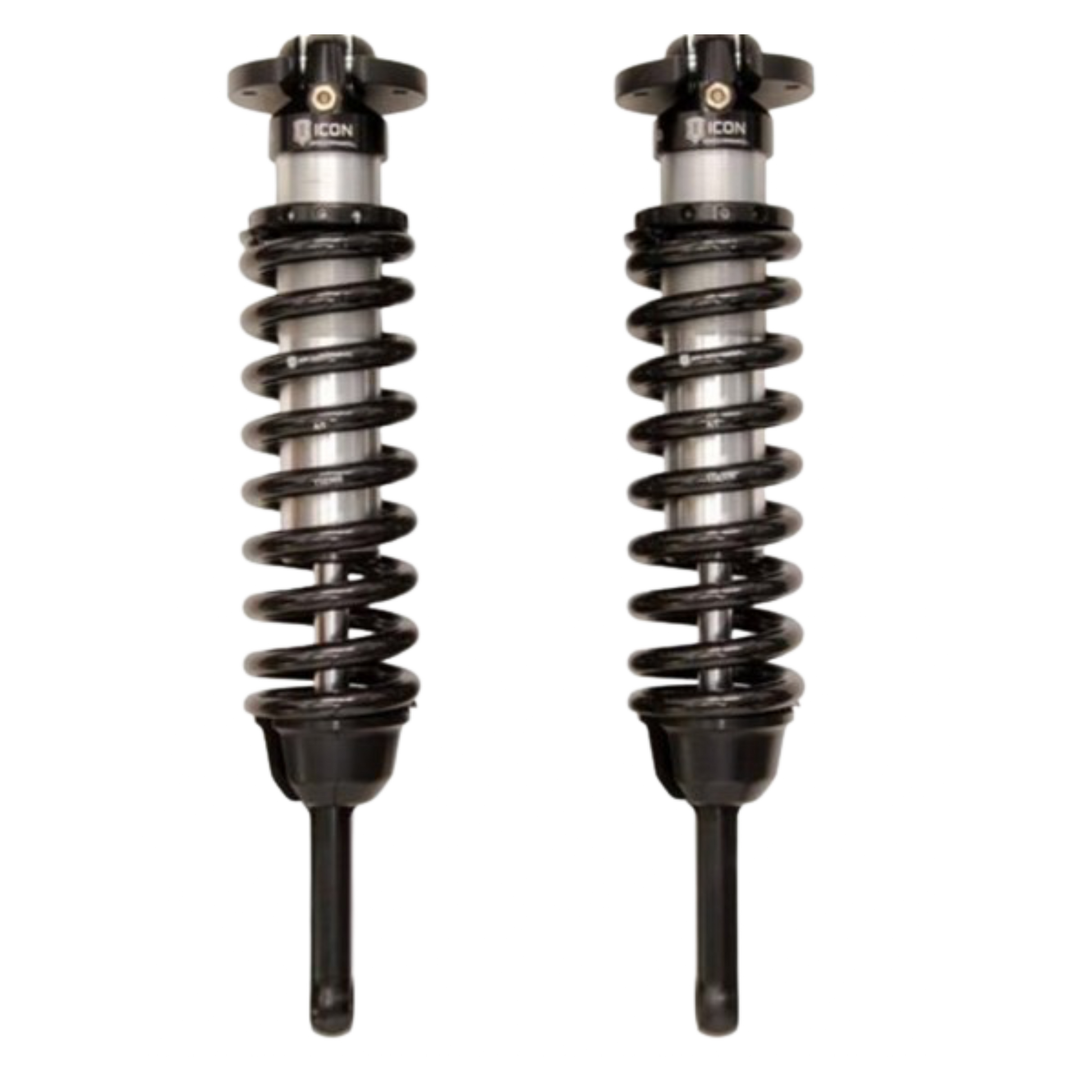

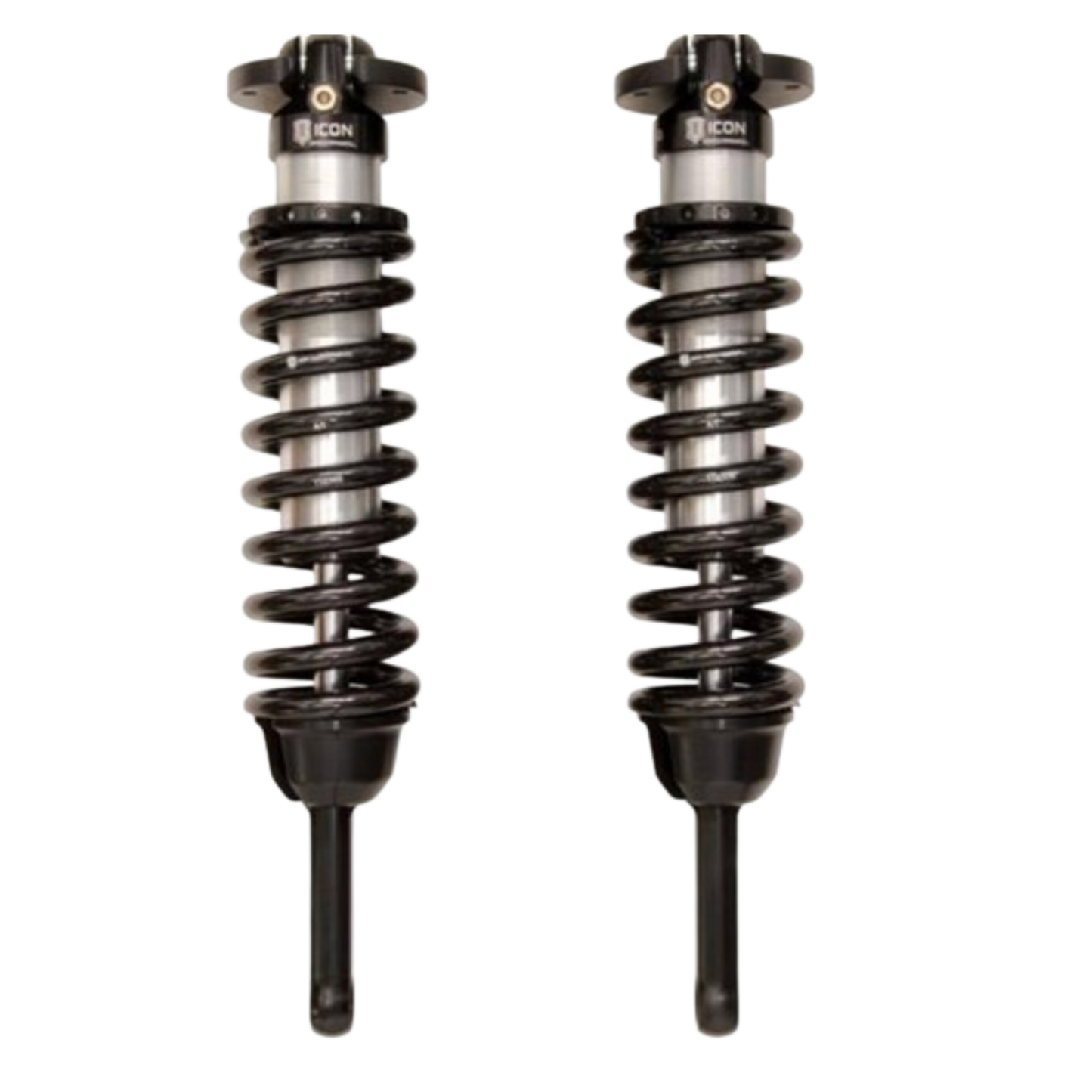

Icon | Internal Reservoir Extended Travel Coilovers | Equipped With 700lb Springs | Toyota 4Runner or Toyota FJ Cruiser or Lexus GX460 | 58647-700

Icon Internal Reservoir Extended Travel Coilovers Equipped With 700lb Springs, Toyota 4Runner or Toyota FJ Cruiser or Lexus GX460

58647-700

Application:

2010-2023 Toyota 4Runner

2010-2014 Toyota FJ Cruiser

2010-2023 Lexus GX460

Features and Benefits:

• ** UPPER CONTROL ARMS REQUIRED FOR EXTENDED TRAVEL**
• Adjustable coilovers yield 0-3.5" of front lift height
• Coil springs rated at 700 lb-in
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Tech Info:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
