Icon | Stage 1 | 0-3.5" Lift | (2010-2023) Lexus GX460 | K53181

Icon Stage 1 0-3.5" Lift, 2010-2023 Lexus GX460

K53181

Application:

2010-2023 Lexus GX460

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• Included adjustable rear track bar ensures KDSS compatibility
• Bolt-on system means no cutting or welding necessary for install

Tech Info:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #33: Gx460 Models Equipped With Factory Rear Air Ride Suspension Require ICON Rear Coil Conversion Kit #56110
• APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles.
• APPLICATION NOTE #46: Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment.
• APPLICATION NOTE #47: 700Lb Coil Spring Available For Heavier Equipped Vehicles.
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Ships in multiple boxes

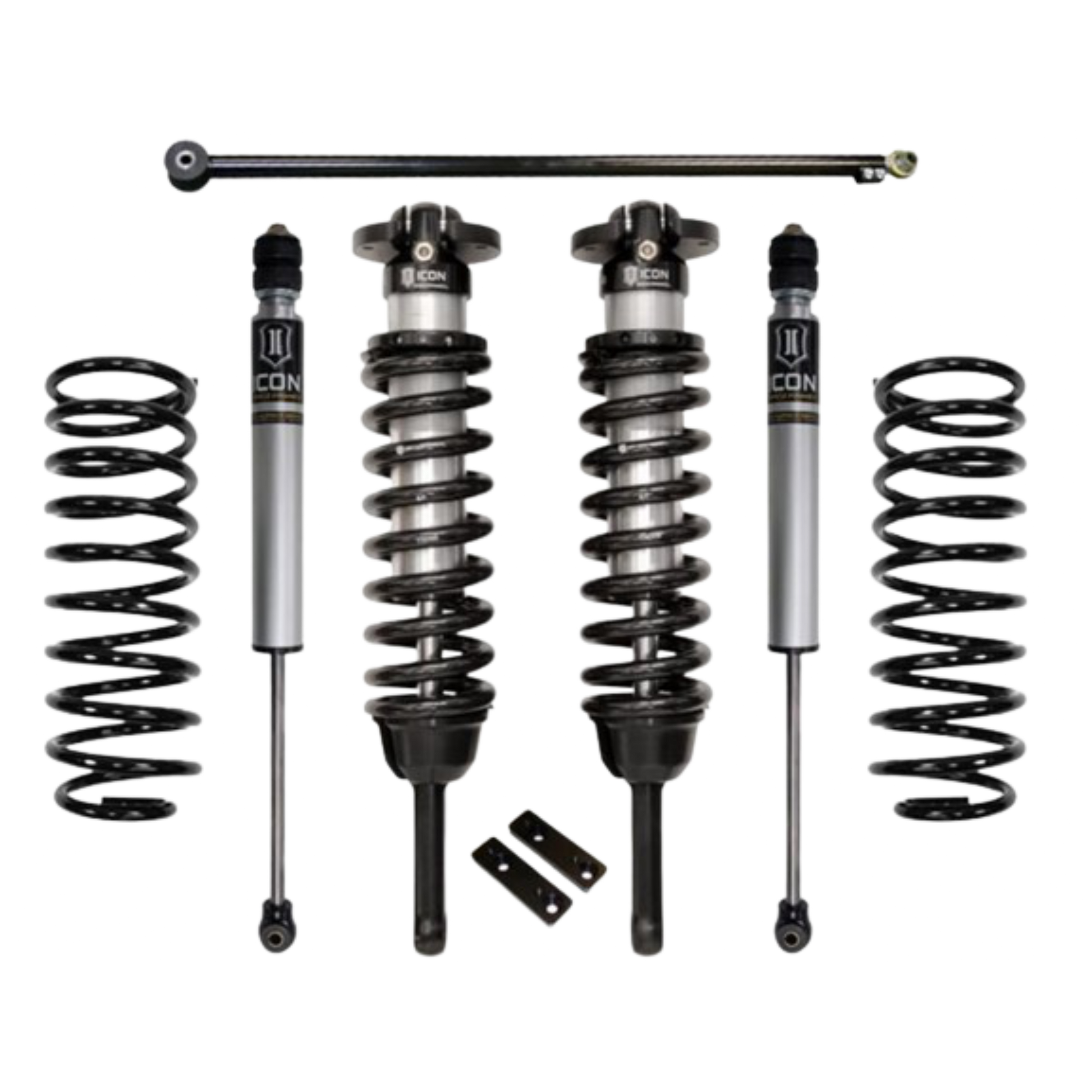

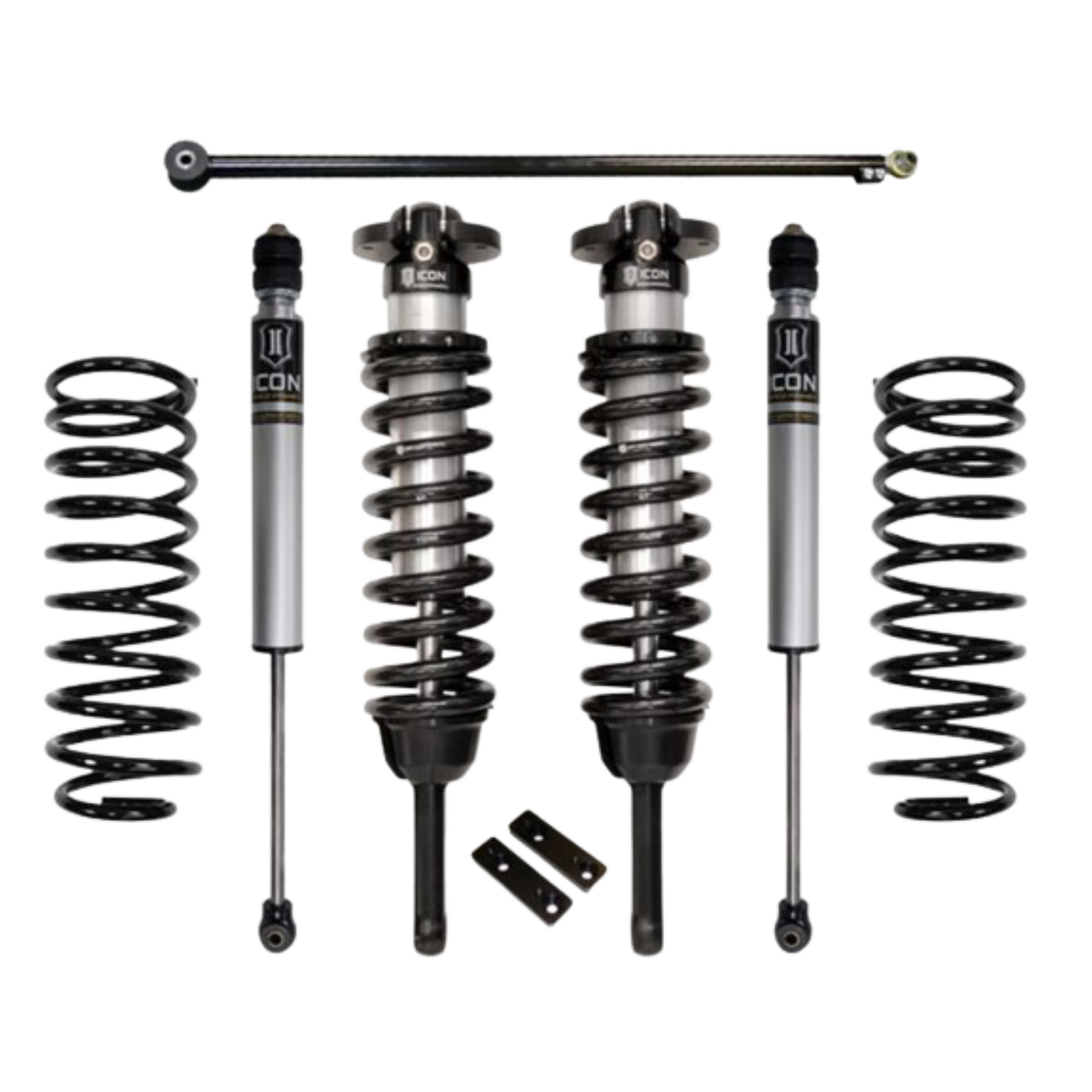

System Components:

• 58646 (QTY: 1) | 10-14 FJ/10-23 4RNR/10-23 GX 2.5 VS IR COILOVER KIT
• 52700 (QTY: 1) | 07-14 FJ/03-23 4RNR/03-23 GX REAR 2" SPRING KIT
• 54200 (QTY: 1) | 07-14 FJ/03-23 4RNR/03-23 GX REAR ADJ TRACK BAR KIT
• 56505 (QTY: 2) | 07-14 FJ/03-23 4RNR/03-23 GX 1-3" REAR 2.0 VS IR
