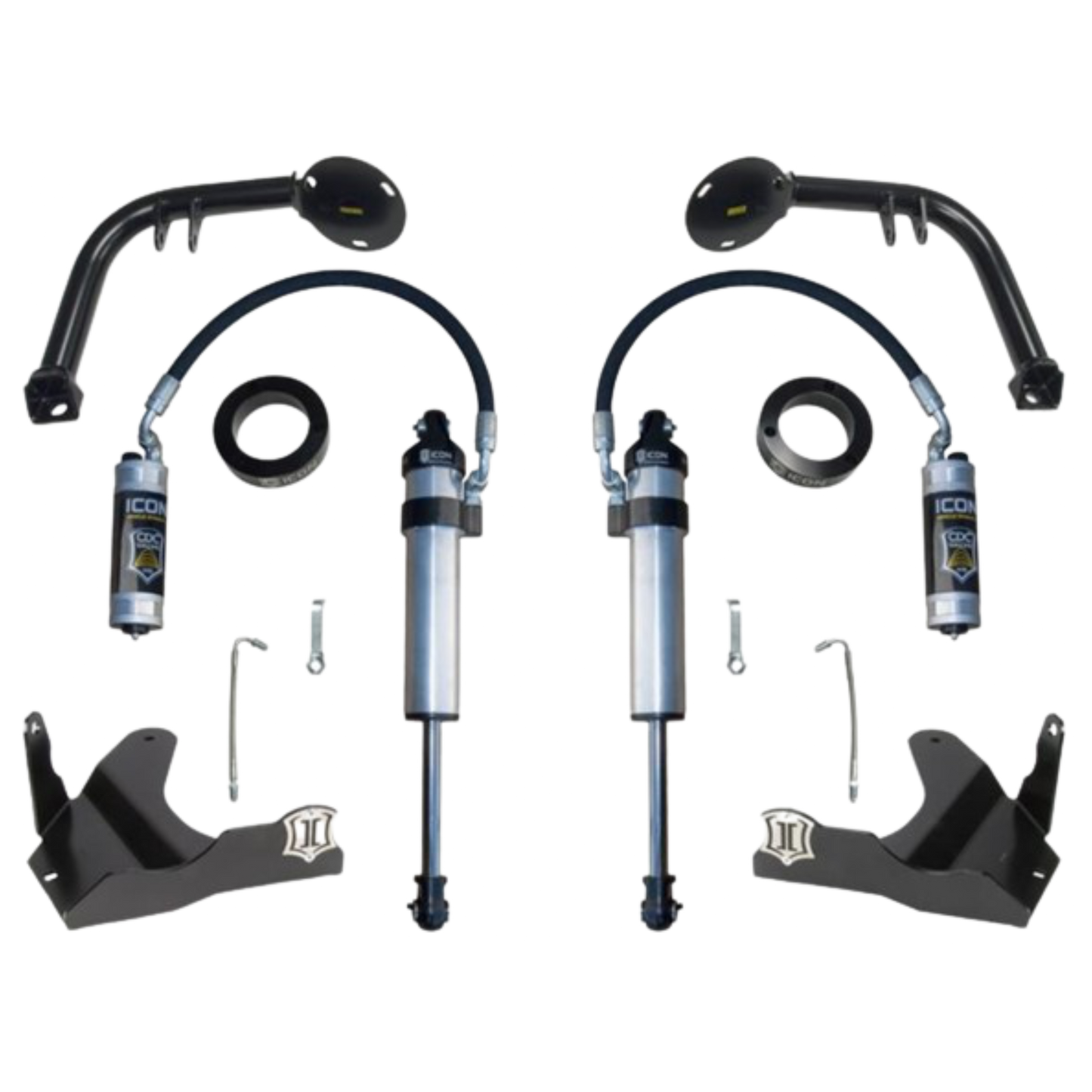

Icon | Stage 2 | Front | S2 Secondary Shock Upgrade System | 2016-2023 Toyota Tacoma | K53126

Icon Stage 2 S2 Secondary Shock Upgrade System, 2016-2023 Toyota Tacoma

K53126

Application:

2016-2023 Toyota Tacoma

Features and Benefits:

• Drastically improves vehicle damping ability off-road
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• 2.5 Aluminum Series Secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and re-valve able
• Mostly bolt-on design makes for straightforward install

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming, and modifications will be required.)
• APPLICATION NOTE #17: These are stand-alone kits and are not to be used in conjunction with any other aftermarket kits
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #59: Welding required - lower control arm
• APPLICATION NOTE #95: Does not work with TRD Big Brake Kit
• TECH NOTE: Compatible with 0-2.75" of front lift on most Tacoma sub models. Compatible with 0-1.25" of front lift on TRD Pro.
• TECH NOTE: Requires OE front lower control arms. Not compatible with other aftermarket front lower control arm kits.

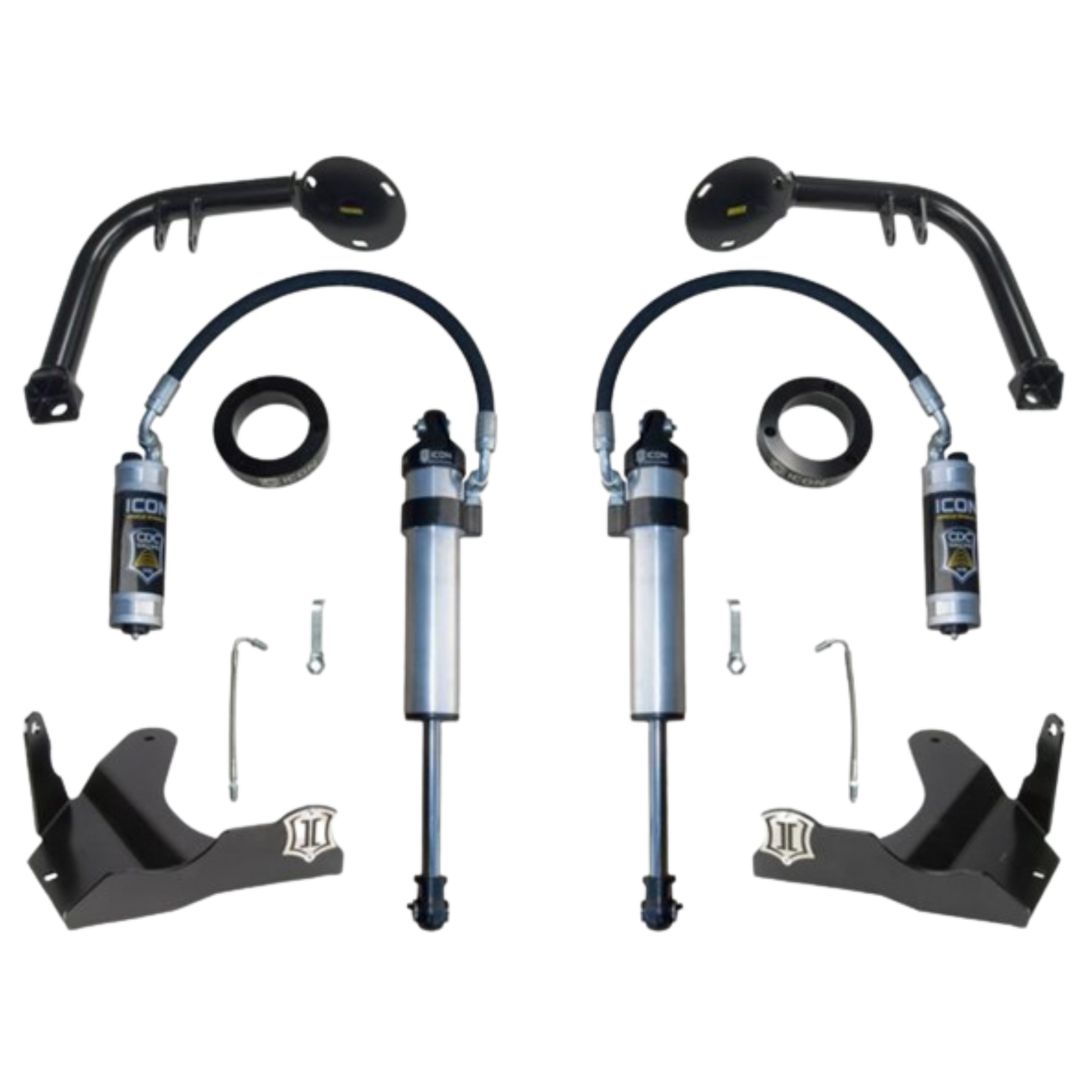

System Components:

• 56107 (QTY: 1) | 16-23 TACOMA SKID PLATE KIT
• 56102 (QTY: 1) | 07-14 FJ/03-23 4RUNNER/05-23 TACOMA S2 SHOCK HOOP KIT
• 59706P (QTY: 1) | TOYOTA S2 SECONDARY 2.5 VS RR PAIR
